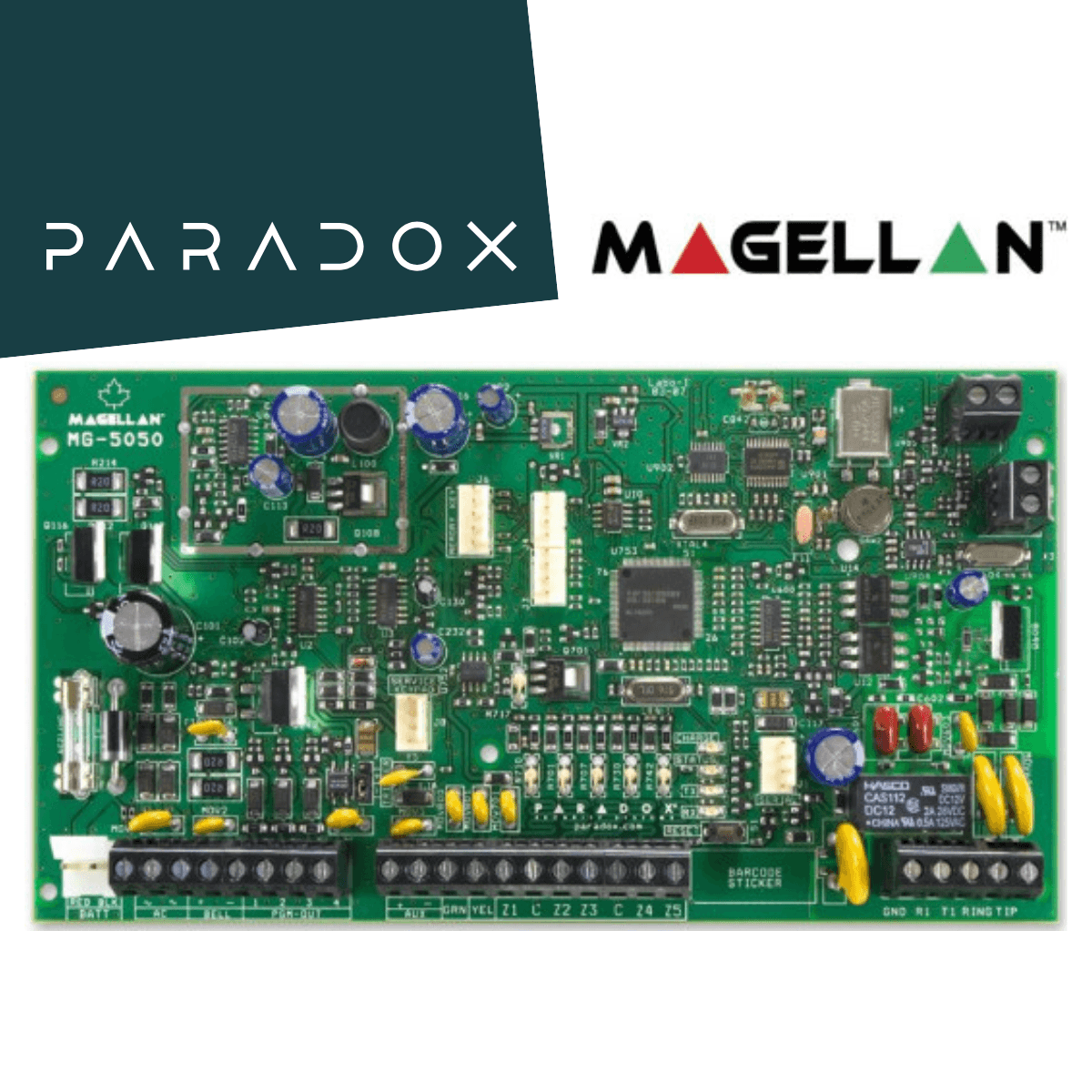

Magellan Series
Magellan Two-Way Wireless Security Systems – Smart, Reliable Protection Made Simple
Magellan two-way wireless security systems combine advanced protection, wireless convenience, and effortless installation, making them ideal for residential homes and small commercial properties.
Designed with both installers and end-users in mind, Magellan delivers reliable performance, flexible configuration, and intuitive control, all in one powerful platform.
Reliable, Professional-Grade Security
- Supports up to 32 protection zones
- 2 partitions – perfect for separating home and office areas
- Up to 32 users and 32 remote controls
- 512-event memory buffer for detailed activity tracking
- RF jamming supervision for enhanced wireless protection
- Patented dialer circuit for secure communication
Advanced Wireless Convenience
- Built-in transceiver
- Supports wireless sirens (SR130 / SR150)
- Up to 8 wireless keypads (K37)
- Up to 2 wireless repeaters for extended coverage
- GPRS communication (PCS Series)
- Internet connectivity via IP150+ module
- Personal dialing and voice reporting (VDMP3)
Discover all features, technical specifications, and installation options of the Magellan security system.
Discover Magellan(opens in a new tab)| Security Features | MG5050+ | MG5075 |
|---|---|---|
| StayD | Yes | Yes |
| 2 Serial Ports | Yes | No |
| Built-In Transceiver | Yes | Yes |
| Maximum Zones* | 32 | 32 |
| On-Board Hardwired Zones | 8 (16 with ATZ) | 5 (10 with ATZ) |
| Keypad Zones | 15 | 15 |
| Partitions | 2 | 2 |
| Users | 32 | 32 |
| Remote Controls | 32 | 32 |
| PGMs | 16* (4 on-board) | 16* (4 on-board) |
| Supported Cameras | No | 15 |
| Events Buffered | 512 | 512 |
| Wireless Sirens (SR130 / SR150) | Yes | Yes |
| Wireless Keypads | 8 (K37) | 8 (K37) |
| Wireless Repeaters | 2 | 2 |
| Expansion Bus | Yes | Yes |
| GPRS (PCS Series) | Yes | Yes |
| Internet Module (IP150+) | Yes | Yes |
| Voice and Utility Reporting | VDMP3 | VDMP3 |
| Personal Dialing | Yes | Yes |
| Patented 2 opto coupler dialer circuit (US Patents 5751803, RE39406) | Yes | Yes |
| In-field Firmware Upgrade | Yes | Yes |
| Auxiliary Output | Yes | Yes |
| RF jamming supervision | Yes | Yes |
